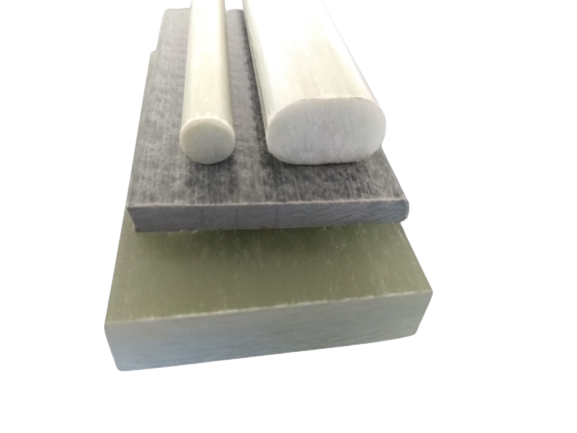

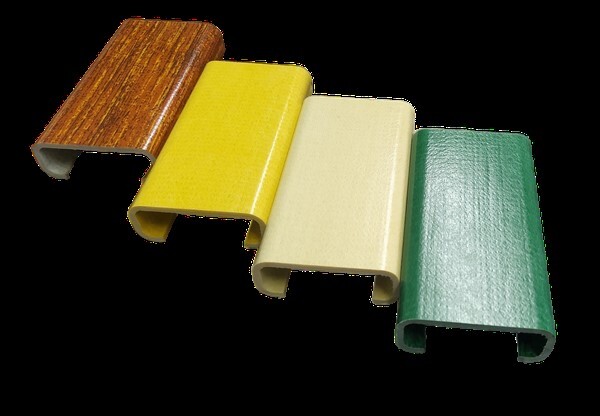

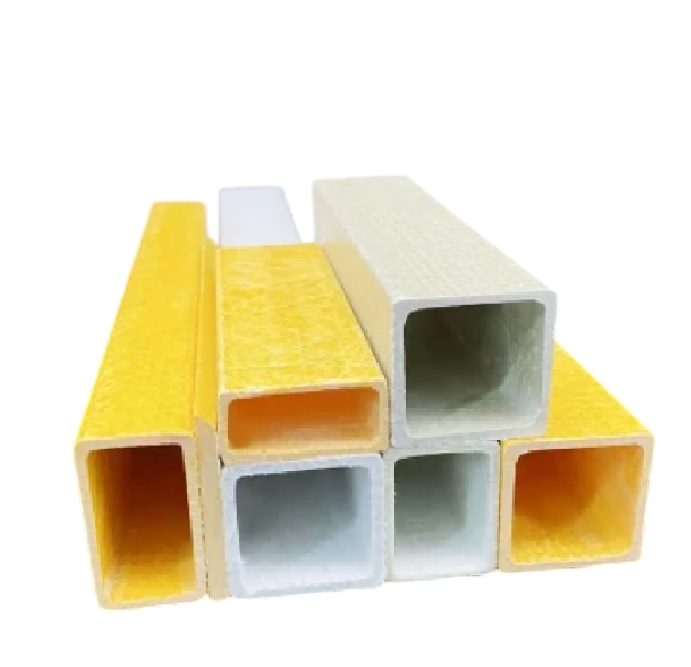

FRP Pultruded Profiles

Name: FRP Pultruded Profiles
Brand: SINEWY COMPOSITE PRODUCTS
Price: 145.00 INR
Availability: InStock

145.00 INR/Piece

Get a Price/Quote

Product Details:

Shape Channel, Angle, I-Beam, Flat Strip, U-Profile
Coating Type Polyester or Vinylester Resin Coating
GSM Typically 450 to 900 GSM
Temperature -40C to 120C
Density 2.0 Gram per cubic centimeter(g/cm3)
Glass Type E-glass
Thermal Conductivity Low, typically 0.25 W/mK
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

FRP Pultruded Profiles Price And Quantity

Price Range 150.00 - 180.00 INR/Piece
Price 145.00 INR/Piece
Minimum Order Quantity 20 Number

FRP Pultruded Profiles Product Specifications

Glass Type E-glass
Thermal Conductivity Low, typically 0.25 W/mK
Usage & Applications Corrosion Resistant Structures, Chemical Plants, Electrical Insulation, Marine Industry
Thickness Range from 3 mm to 12 mm
Technique Pultrusion
Application Insulator for 11 kv and 66 Kv
Shape Channel, Angle, I-Beam, Flat Strip, U-Profile
Coating Type Polyester or Vinylester Resin Coating
Product Type Insulator rod
Surface Treatment Resin Coated / UV Protected
GSM Typically 450 to 900 GSM
Temperature -40C to 120C
Material Glass Fiber Epoxy Rod
Dimension (L*W*H) Customizable as per requirement
Density 2.0 Gram per cubic centimeter(g/cm3)

Tensile Strength 240 MPa
Water Absorption < 0.5% (24 hours @ 23C)
Color Yellow, Grey, Green, Custom colors available
Electrical Insulation Excellent
Fire Retardancy Available as per request
Length Available 1-6 meters or custom lengths
Corrosion Resistance High
Flexural Strength 320 MPa

FRP Pultruded Profiles Trade Information

Supply Ability 1000 Number Per Day
Delivery Time 1 Week
Main Domestic Market All India

Product Description

There are many kinds of FRP pultrusion profiles, such as glass fiber reinforced plastic round tube, glass fiber reinforced plastic square tube, glass fiber reinforced plastic rectangular tube, glass fiber reinforced plastic round bar, glass fiber reinforced plastic I-beam.

Exceptional Mechanical and Electrical Performance

FRP Pultruded Profiles offer remarkable strength and flexibility, featuring high tensile and flexural properties. With excellent electrical insulation, these profiles are an ideal choice for use in high-voltage insulator applications. Their low water absorption and thermal conductivity make them reliable in aggressive and variable environments.

Customizable Solutions for Diverse Industries

These profiles are available in a range of shapes, thicknesses, and lengths, tailored to the unique needs of industries such as electrical, marine, and chemical processing. Surface treatments like resin coating and UV protection ensure long-lasting performance, even in harsh outdoor or corrosive conditions.

Superior Corrosion and Fire Resistance

Engineered from E-glass fibers and protected with polyester or vinylester resin coatings, FRP Pultruded Profiles demonstrate high resistance to chemical attack and corrosion. Fire retardant options are available on request, making them suitable for installations with stringent safety requirements.

FAQ's of FRP Pultruded Profiles:

Q: How are FRP Pultruded Profiles manufactured?

A: FRP Pultruded Profiles are made using a continuous pultrusion process, where glass fiber rovings are saturated with resin and pulled through a heated die to achieve precise structural shapes and properties.

Q: What applications are these profiles commonly used for?

A: They are widely used as insulators for 11 kV and 66 kV electrical equipment, in corrosion-resistant structures, chemical plants, and marine environments, owing to their robust electrical insulation and chemical resistance.

Q: Can I customize the dimensions, color, and thickness?

A: Yes, dimensions, length (1-6 meters or custom), thickness (3-12 mm), and colors (yellow, grey, green, or custom) can all be tailored to meet specific project requirements.

Q: What benefits do FRP Pultruded Profiles offer over traditional materials?

A: They provide high strength-to-weight ratio, excellent corrosion resistance, low thermal conductivity, and outstanding electrical insulation, making them safer and more durable in demanding environments.

Q: Are these profiles recommended for outdoor use?

A: Absolutely. Their resin-coated, UV-protected surfaces and high corrosion resistance make them particularly suitable for outdoor and marine applications, ensuring longevity and reliability.

Q: How do I specify fire retardancy in my order?

A: Fire retardant FRP Pultruded Profiles are available upon request. During ordering, specify the Level of Fire Retardancy required so the appropriate resin and manufacturing protocols can be applied.
