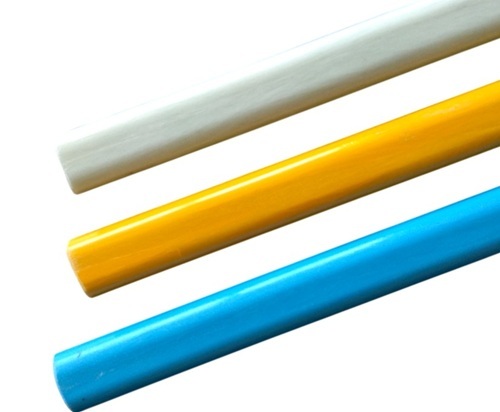

FRP Round Rod

Minimum Order Quantity : 50 Kilograms

Delivery Time : 1 Week

Application

Insulator for 11 kv and 66 Kv

Color

Different Available

Material

Glass Fiber Epoxy Rod

Product Type

Insulator rod

Surface Treatment

Smooth

Usage

Commercial

Certifications

AN ISO 9001 - 2015 CERTIFIED COMPANY

Delivery Time

1 Week

Main Export Market(s)

Australia, Central America, North America, South America, Asia

Packaging Details

Standard Packing process

Sample Available

No

Sample Policy

Within a certain price range free samples are available

Supply Ability

1000 Per Day

FRP (Fiberglass Reinforced Polymer) rods, commonly referred to as fiberglass rods, are structural components made from fiberglass combined with a resin matrix and various additives to suit specific applications. FRP pultrusion production is a continuous process conducted at controlled temperatures and line speeds to produce fiber glass reinforced polymer solid rods of any length and constant cross-section. Reinforcement fibers may include roving, continuous mat, woven, or others. Features Corrosion resistant Light weight and high strength Anti-ageing Easy maintenance Excellent electromagnetism property Excellent insulation property Specifications: Diameter Kg/M Tol Diameter Kg/M Tol 4mm 0.025 2% 16mm 0.424 2% 5mm 0.040 2% 18mm 0.535 2% 6mm 0.059 2% 20mm 0.660 2% 8mm 0.105 2% 24mm 0.945 2% 10mm 0.165 2% 25mm 1.020 2% 12mm 0.325 2% 25.4mm 1.065 2% Technical Specifications : Sr. # Properties Test Method Unit Values 01 Density ASTM D695 Kgs/cm3 1.9 to 2.1 02 Fibre /Glass Content ---- % 65 - 80 03 Diameter Stability Micro-Meter mm 0.05 04 Ovality Micro-Meter mm 0.10 05 Colour (Standard) ---- --- White / Customised 06 Tensile strength ASTM D638 N/mm2 200 - 410 07 Flexural Strength ASTM D695 N/mm2 180-220 08 Barcol Hardness -- -- 45 09 Water Absorption after 24 Hrs. immersion in water at 20oC, ASTM D570 % 0.50
