FRP इंसुलेशन रॉड

उत्पाद वर्णन

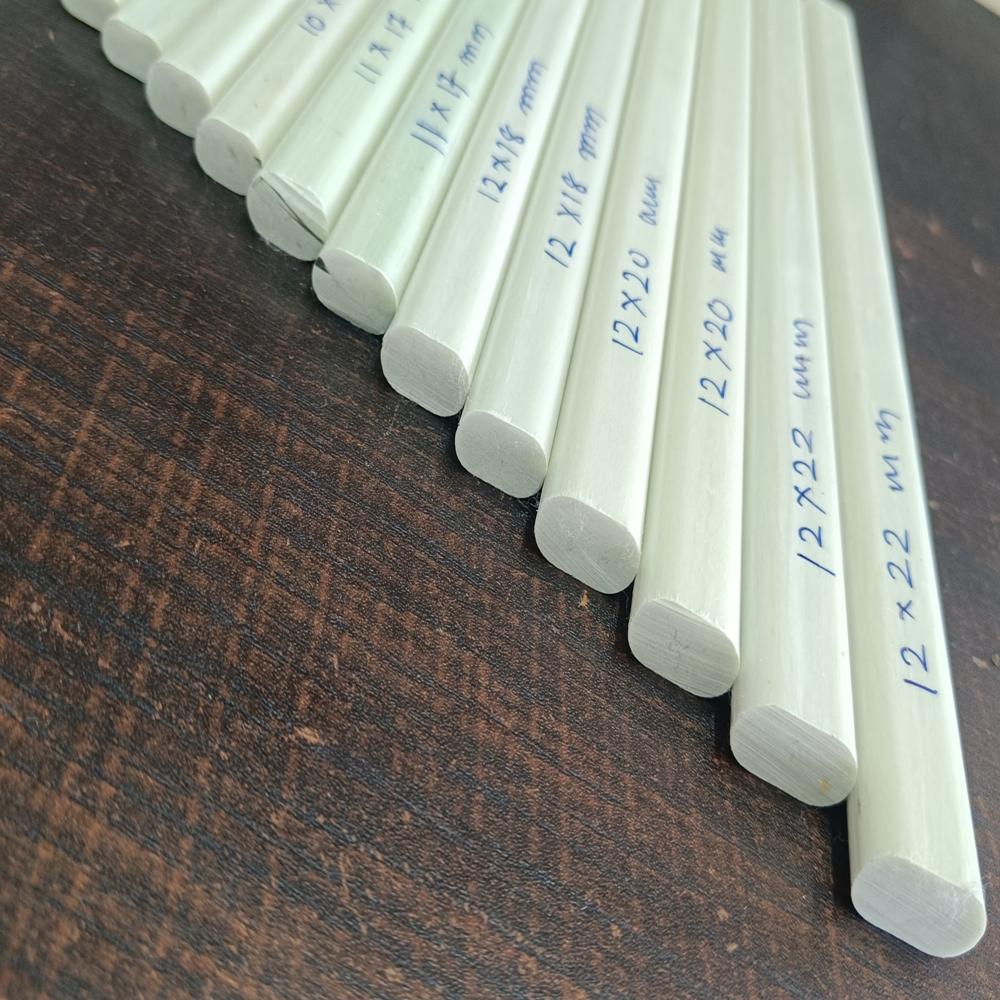

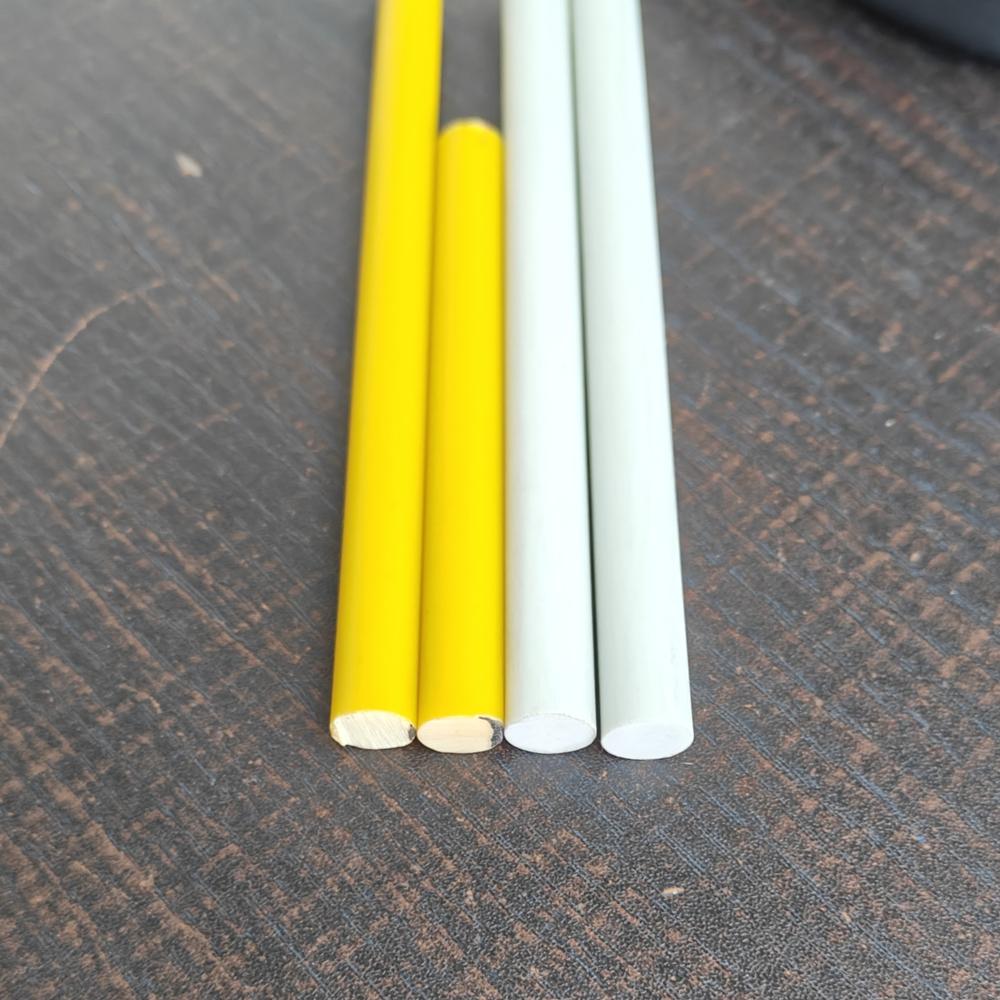

FRP (Fiberglass Reinforced Polymer) rods, commonly referred to as fiberglass rods, are structural components made from fiberglass combined with a resin matrix and various additives to suit specific applications. FRP pultrusion production is a continuous process conducted at controlled temperatures and line speeds to produce fiber glass reinforced polymer solid rods of any length and constant cross-section. Reinforcement fibers may include roving, continuous mat, woven, or others. Features Corrosion resistant Light weight and high strength Anti-ageing Easy maintenance Excellent electromagnetism property Excellent insulation property Specifications: Diameter Kg/M Tol Diameter Kg/M Tol 4mm 0.025 2% 16mm 0.424 2% 5mm 0.040 2% 18mm 0.535 2% 6mm 0.059 2% 20mm 0.660 2% 8mm 0.105 2% 24mm 0.945 2% 10mm 0.165 2% 25mm 1.020 2% 12mm 0.325 2% 25.4mm 1.065 2% Technical Specifications : Sr. # Properties Test Method Unit Values 01 Density ASTM D695 Kgs/cm3 1.9 to 2.1 02 Fibre /Glass Content ---- % 65 - 80 03 Diameter Stability Micro-Meter mm 0.05 04 Ovality Micro-Meter mm 0.10 05 Colour (Standard) ---- --- White / Customised 06 Tensile strength ASTM D638 N/mm2 200 - 410 07 Flexural Strength ASTM D695 N/mm2 180-220 08 Barcol Hardness -- -- 45 09 Water Absorption after 24 Hrs. immersion in water at 20oC, ASTM D570 % 0.50
